ADVANCED CAPABILITY DETAILS

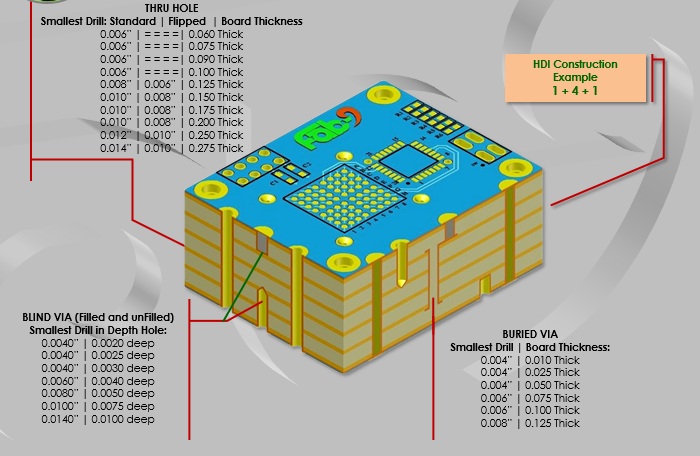

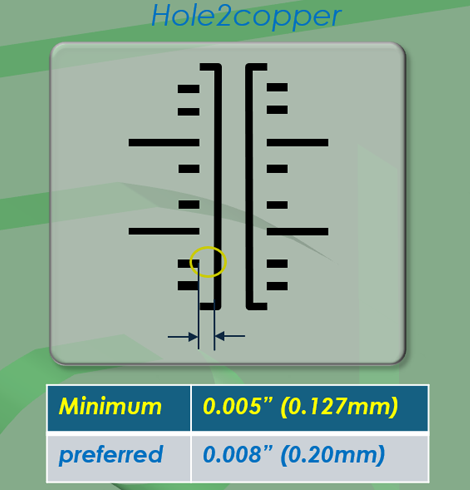

Hole2Copper

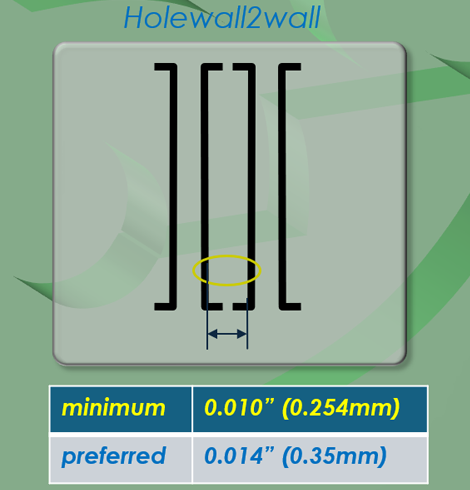

Holewall2Hole

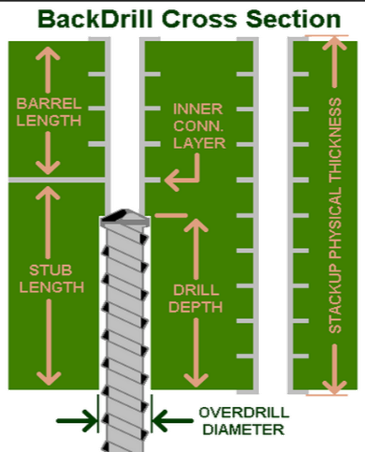

Back Drill and Flip Drill

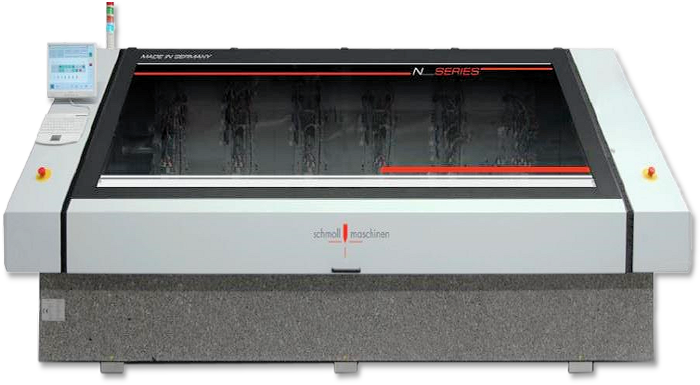

Machine Specification. |
|
| Panel Size: | 24 x 26” |
| CCD: | 1xCCD camera on 1 station (in CCD mode only 1x station works) |
| Z-axis: | linear motor, 25 m/min Contact drilling capability for Backdrilling |
BGA < 0.4mm, Stacked and Offset Microvias
Electrical Testing (Aerospace Class III Setting)
| Test Standard: | IPC 9252 | Test Voltage: | 250 VDC |
|---|---|---|---|
| Continuity Testing: | 10Ω | Isolation Testing: | 100 MΩ |
| (Circuit OPEN if resistance is greater than 10Ω) | (Circuits SHORTED if resistance is less than 100MΩ) | ||
